17t Reefer Box 4X2 Electric Refrigerated Van For Sale Box Truck

Brand Name : SINOTRUK HOWO

Model Number : ZZ1167M4611B

Certification : CCC,ISO

Place of Origin : CHINA

MOQ : 1unit

Price : USD25000-36000/unit

Payment Terms : 30%TT as deposit, the balance should be paid before delivery; 100% irrevocable confirmed L/C at sight

Supply Ability : 3000units/month

Delivery Time : 30-45 days

Packaging Details : Nude packing after painted wax

Loading capacity : 15-18tons

color : red, yellow,green,white,blue,black,etc.

Usage : for transport goods which need low temperature,such as meet,frozen fish,egg,milk and so on.

Transport temperature : -18--5 Centigrade

Contact Now

SINOTRUK HOWO 4X2 Reefer Truck 18 Tons Refrigerated Van Refrigerated Trucks

What temperature should frozen food be delivered?
When shipping, frozen food must be kept at 0°F air temperature while the internal product temperature should never exceed 10 0°F. Temperature-controlled vans need to be pre-cooled to 20°F air temperature or lower during loading.

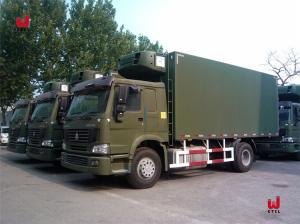

1. HOWO 6 wheeler Vans Truck reefer truck Photos

17t Reefer Box 4X2 Electric Refrigerated Van For Sale Box Truck

2. HOWO Heavy Duty refrigerated van Truck MAIN DESCRIPTION
Model ZZ1167M4611B
Driving Type 4x2
Weight (kg) Curb Weight 6860
Rated Loading Capacity (kg) 16000
Gross Vehicle Weight (kg) 16000
Dimension (mm) Overall Dimensions 7990x2496x2958
Carriage Dimensions 5550×2300×2050
Temperature -5℃,-10℃,
-15℃,-18℃
wheelbase 4600
Min. Ground Clearance 220
Maximum Speed(km/h) 90
Economical Speed(km/h) 75
Maximum Gradability(%)
Turning diameter(m) 14
Engine Engine Type WD615.62, WD615.87
Fuel Diesel
Cylinder Quantity 4
Rated power(kW)/Rev(r/min) 196/2200
213/2200
Horse Power 266/290
Displacement (ml) 9726
Emission Euro II
Gear-box HW13710CL
Clutch(mm) 430
Axle Front HF7
Rear ST16
Fuel Tank(L) 400
Chassis Cross-section(mm) 8+5/300
Suspension(Front,Back) 9/12
Tyre 295/80R22.5; Quantity: 6+1

3. Other van trucks we manufactured for customers
2Tons to 10tons 17t Reefer Box 4X2 Electric Refrigerated Van For Sale Box Truck Driving Model:4x2
Engine:65hp,90hp,110hp,115hp,130hp,160hp
Gearbox: Manuel Transmission
Tire:8.25,9.0,10.0
payload:3-15t
15tons to 25tons 17t Reefer Box 4X2 Electric Refrigerated Van For Sale Box Truck Cabin:HW76, Long Cab,with one bed
Engine: 266hp,290hp,336hp
Gearbox:Manual Transmission with 10 forwards and 2 reverses
Tire:1200R20 Radial tire, 12R22.5Tubless tire
Box Length:5.5-8.5m
25tons to 40tons 17t Reefer Box 4X2 Electric Refrigerated Van For Sale Box Truck

Cabin: A7-W one sleeper
Engine: 266hp,290hp,336hp,371hp
Gearbox: Manual Transmission with 10 forwards and 2 reverses
Tire:1200R20 Radial tire, 12R22.5Tubless tire
Box Length:7-9.3m

4. Workshop Gallery

17t Reefer Box 4X2 Electric Refrigerated Van For Sale Box Truck

5. China Truck Packing and Shipping
Packing: Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO, Container

17t Reefer Box 4X2 Electric Refrigerated Van For Sale Box Truck
